CAME ATS-P524 Kit

Description

CAME ATS-P524 Kit

Swing Gate Automation For A Pair of Gates Up To 5000mm each leaf. ( Weight Of 400Kg)

24Volt, EN Complient, 3yr Warranty

3 core CABLE connection

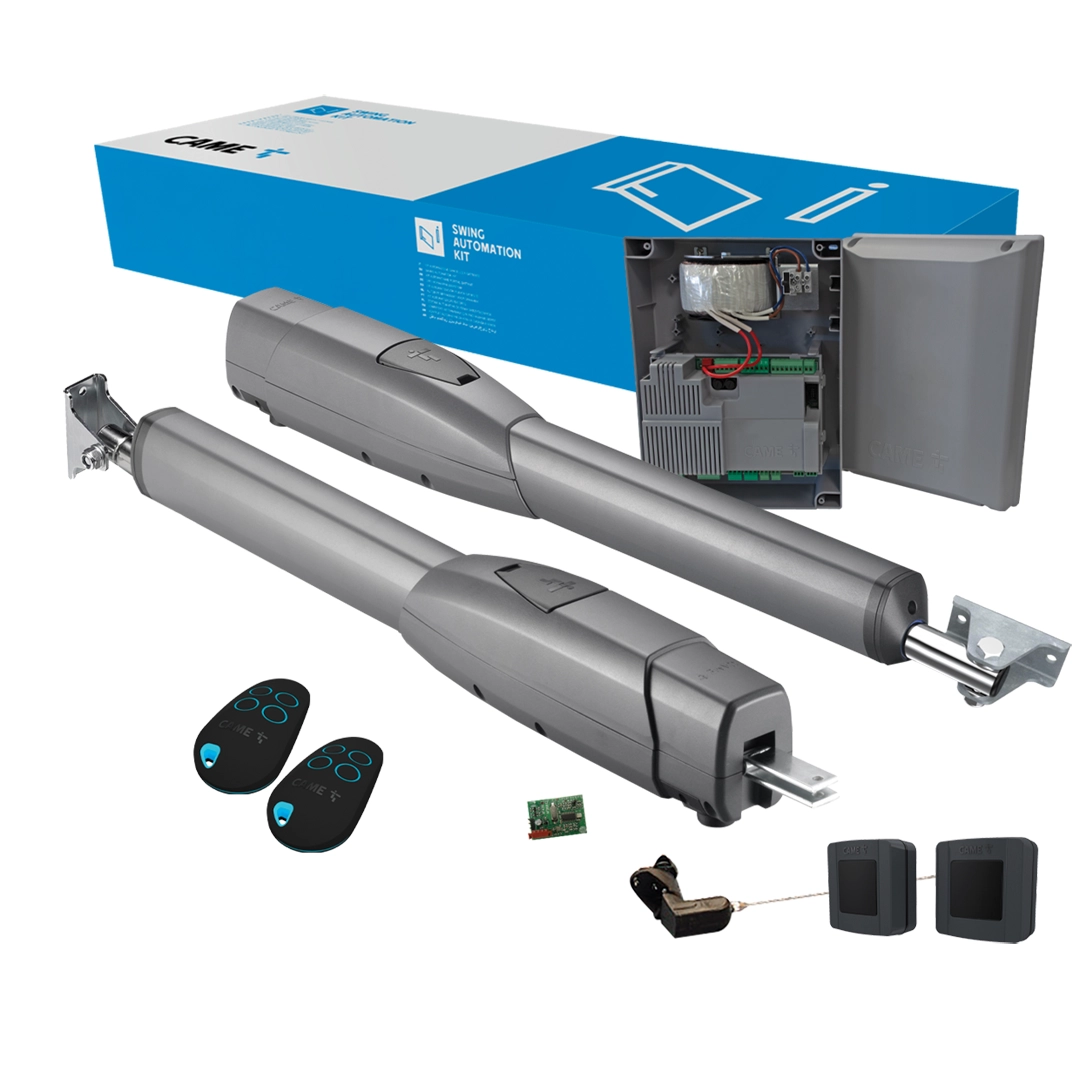

CAME ATS-P524 Kit includes

2 x ATS 50DGS Telescopic Motors – 801MP-0080

1 x ZL65 Control Panel or 1 x ZLX24 Control Panel

1 x AF43S Radio Card.

1 x Top A433N Antenna.

2 x 806TS-0122 Rolling Code Remote Controls (433.92 M Hz)

1 x DIR10 Pair Safety Photocells. Note: A Second Set Of DIR10 Beams Will Probably Be Required

The below are included FREE OF CHARGE

1 x RGSM-1NCE/GSM/AC CAME Connect Bundle – Standalone GSM Module

1 x RGSM-1NCE/SIM/AC CAME Connect Bundle – 3 Year 480mb Data Only Sim Card

CAME ATS is the universal telescopic motor for swing gate ideal for residential settings and professional or industrial installations.

It is a very versatile operator and thanks to the telescopic extension it is able to adapt perfectly to the different “depths” of the posts. ATS has a perfect slowdown management and obstacle detection thanks to the encoder, a silent and fluid movements thanks to the bevel gear motor and a modern design. The telescopic steel arm is protected by an aluminium casing that provides strength and resistance to atmospheric agents.

The upper or lower metal cover can be easily opened for simple and quick maintenance. The gate travel is adjusted by high precision electronic limit switches, which allow to operate also in an intensive way without ever straining the motor. The new tri-lobe key also has a completely new design, for greater ergonomics.

ATS is connected to the Cloud system, through the CAME Connect platform, and can be managed using the CAME Automation mobile app, to set, control and display the status of the gate automation remotely. ATS also has CAME KEY compatibility built-in.

CAME ATS30DGS MOTOR Features

• Designed for applications with C Max. up to 200 mm.
• Sturdy and durable with die-cast aluminium supporting structure.
• Reducer with bevel gear for greater fluidity of movement.
• Release system, with the possibility of remote control.
• Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

Now with FREE Came Connect bundle

The future of cloud connected automation has arrived. FREE CAME cloud connectivity with every automation kit. Welcome to a new era of Always Connected automation. See below video for more information.

Option to upgrade to the new ZLX24 Control Panel

ZLX24SA is a multifunction control panel, with a 230 V AC power supply, for 24 V double leaf swing gates, with programming and graphical signalling display, self-diagnosis of safety devices, Adaptive Speed ​​& Torque Technology, BUS CXN, 4 safety inputs and storage of up to 1000 users.

• EQUIPPED WITH ADVANCED ELECTRONIC FUNCTIONS for a smarter installation, including ADAPTIVE SPEED AND TORQUE CONTROL, VIRTUAL ENCODER and SMART MOVEMENT CONTROL.
• DIFFERENT CONNECTION MODES for command and safety accessories, with CXN BUS technology, RIO wireless system and traditional and resistive inputs.
• SIMPLIFIED INSTALLATION AND WIRING thanks to innovative mechanical and electronic solutions.

MAIN FEATURES

• Programming and graphical signaling display
• CNX BUS inputs, 4 Settable safety inputs and B1-B2 Output
• RIO System 2.0
• CAME KEY and Gateways slot
• Adaptive Speed and Torque Technology and Virtual Encoder management
• Clock module
• 1000 users
• PCB plastic cover
