Fadini Vigilo Bollard 2294L

Description

Fadini Vigilo Bollard 2294L

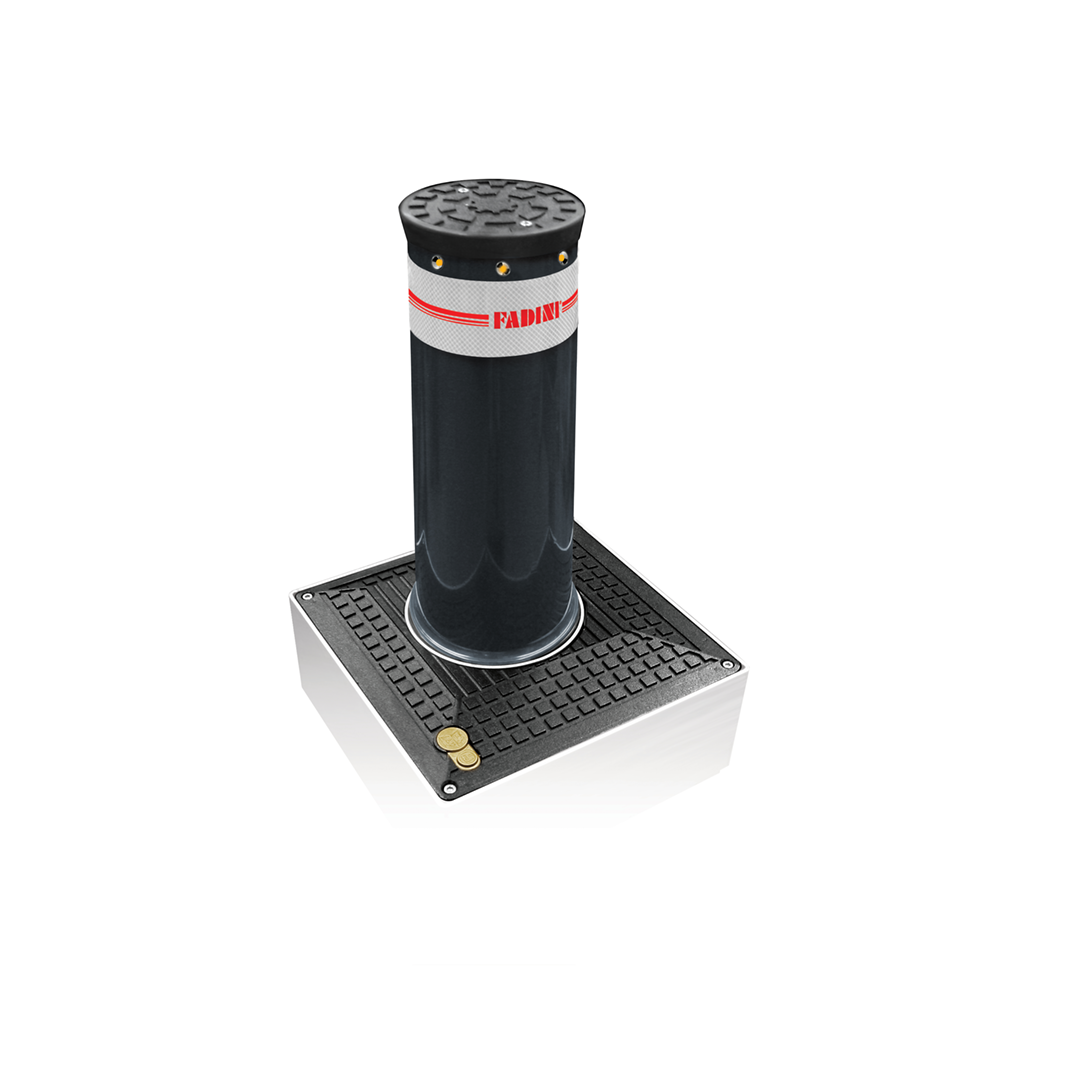

VIGILO Hydraulic Bollard 800x200mm

Fadini Vigilo 2264 Bollard F/2294L

Fully retractable bollard for access control

Automatic oil-hydraulic system, 230 Vac

DESIGN AND MANUFACTURING

Recommended to control access to residential areas and also in commercial and industrial applications.

OIL-HYDRAULIC

Hydraulic locking device in standing position (standard) and emergency manual lowering by a release spanner supplied with the equipment. Solenoid valve (as an option) for automatic lowering in case of power failure. Tested for heavy duty service even in low and high temperature conditions.

EASY ACCESS TO THE OIL-HYDRAULIC COMPONENTS

The handy housing position of the motor pump and oil-hydraulic actuator inside the bollard allows for easy maintenance and reduces service and installation times. In this way the components are also more protected, rust and other factors of deterioration are prevented.

SIMPLE AND QUICK TO INSTALL

Reduced weight of the pit so that no particular excavation or brick works are needed. Cataphoresis treated and polyester powder coated scratch-proof steel cylinder. Available option in AISI 304 brushed stainless steel. Hall effect limit switch sensors, head with rubber edge, LED lights (optional).

VERSATILE

A vast range of command and safety accessories allow for reliable and precise control of the installations. The electronic control unit can be set so that it can manage several bollards at a time.

UK Mainland Delivery Included on the Fadini Vigilo Bollard 2294L

To see our Full range of Fadini Bollards click here

For more information from the manufacturer click here

Unsure which type of gate automation is best for your situation or need technical help? We have over 30 years of experience in the Gate Automation industry so feel free to call us on 01223 839991 or email us at [email protected] for free expert advice.

Fully retractable, heavy duty, automatic bollard consisting of an oil-hydraulic motor-pump unit incorporated inside the main structure and an oil-hydraulic actuator inside the moving cylinder. Suitable to meet residential, commercial and industrial requirements and urban applications. IP 67. Height from ground level can be 500, 600 or 800 mm. Scratch-proof S235JRH steel moving cylinder, thickness 4 mm and ø 200 mm, cataphoresis treated and polyester powder coated, or AISI 304 brushed stainless steel option. Aluminium head with rubber edge, cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Moving cylinder fitted with an approved retro-reflecting, high intensity micro-prismatic adhesive film (h 80 mm), available with No. 8 amber-colour signalling LED lights, 10 m electric cable. Hot-dip galvanized steel pit, cover plate allowing access to the hydraulic release device for the manual lowering of the bollard by a special spanner in an emergency. Impact resistance 30.000 J, breakout resistance 160.000 J, static load max 1.600 kg (bollard in raised position), max 20.000 kg (in lowered position). Working temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Absorbed power 330 W. Rising time ~ 5,1 s [h 500 mm from ground level], ~ 5,9 s [h 600 mm from ground level] ~ 7,7 s [h 800 mm from ground level]. Intensive use, 2.000 cycles/a day.
