Locinox MAGNUS Motorised Gate Hinge
Locinox MAGNUS Motorised Gate Hinge
Locinox MAGNUS Motorised Gate Hinge

Locinox MAGNUS Motorised Gate Hinge

£799.00 Ex VAT (£958.80 Including VAT.)

Free UK mainland delivery on orders over £100 (3-5 Working Days )

UK MAINLAND DELIVERY ONLY

MAGNUS is a motorised gate closer and hinge in one

Designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Instruction Manuals and Downloads

    Your question to us

    Clear
    SKU: MAGNUS Category: Tags: ,

    Description

    Locinox MAGNUS Motorised Gate Hinge

    MAGNUS is a motorised gate closer and hinge in one

    Designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

    The MAGNUS motorised gate closer is specifically designed for pedestrian gates up to 1500 mm and 200 kg.

    MAGNUS has a brushless motor specially designed for semi-manual or fully automated outdoor use.

    Why is it special?

    • Safe, reliable operation thanks to low-energyspeed control and integrated obstacle detection
    • Gate operator and hinge in one with integrated circuit board, input/output connectors and external power supply
    • Easy setup with free mobile app

    Locinox MAGNUS Motorised Gate Hinge Features

    • Motorised gate closer with integrated electronics
    • 100 Nm torque

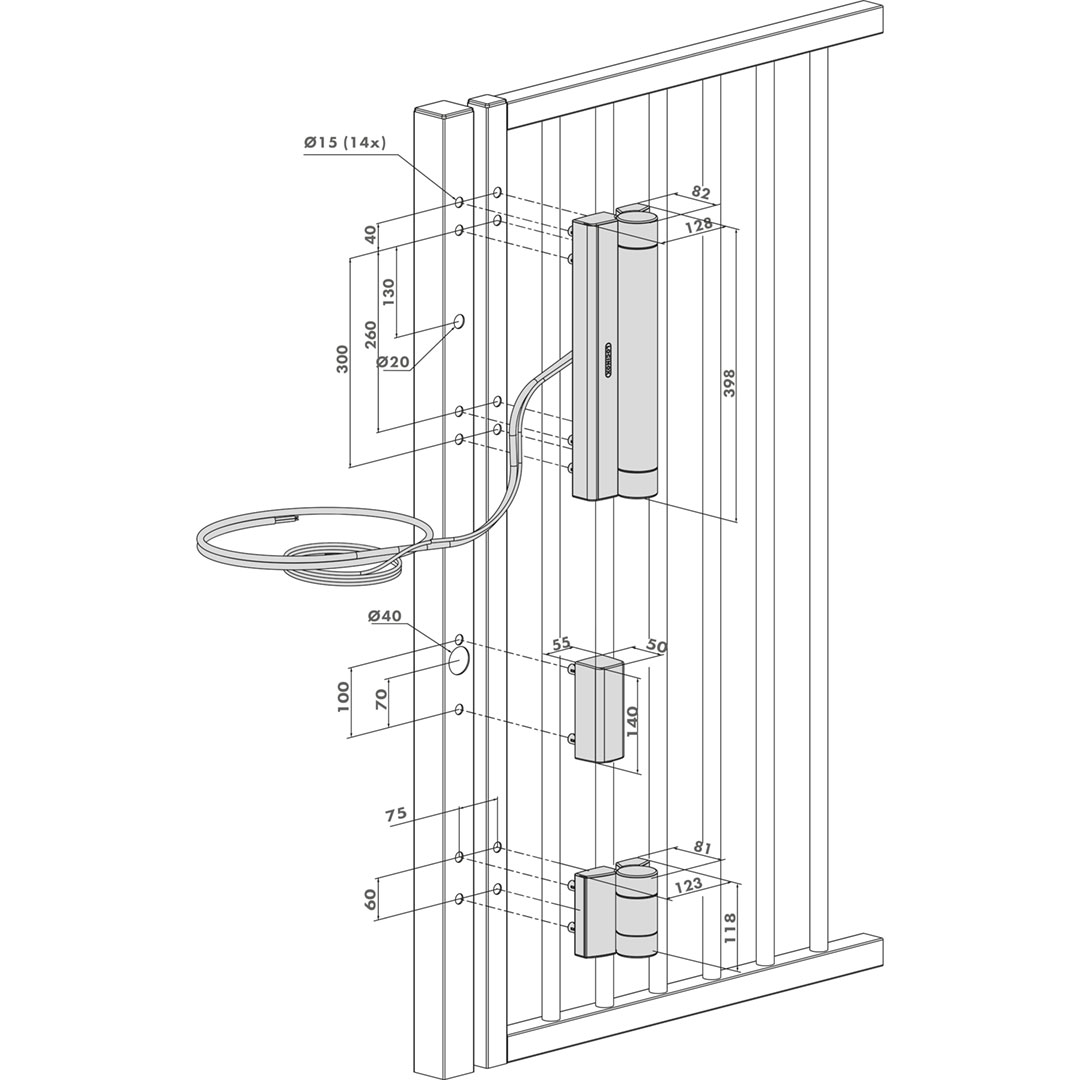

    • Fits on post profiles from 60 mm and gate profiles from 40 mm
    • Steel gear box
    • Anodized aluminium cover
    • Fast and easy fixing with Quick-Fix
    • ETL-tested
    • Input main power supply: 110 AC to 240V AC
    • Motor voltage: 24V DC
    • External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
    • Automated obstacle detection with reverse function
    • Brushless motor: long lifespan and intensive usage
    • Reversible motor with backdrivability for easy manual use – to be combined with a lock
    • 2m cable between motor and connection module
    • Compact and vandal-proof design
    • Configuration via app
    • Tested up to 500.000 cycles
    • EN 16005 Compliant

    See our full range of gate closers here

    For the full Specification, click here

    To discuss if this is the right Gate Closer for you, please give us a call. We will be happy to help



    Instruction Manuals and Downloads

    Instructions
    Product Sheet

    Returns Policy

    Returns – You may cancel the contract at any time up to the end of 14 Calender days after you receive the goods, providing the goods have not been fitted or modified in any way and providing they are returned with the original packaging and providing the goods are in a resalable condition. To cancel the contract you must contact the Supplier in writing by Email or Post. Please note that you will be responsible for the safe return of the goods at your own expense.

    Goods returned as unsuitable will usually be changed for suitable ones, general returned goods are subject to a 15 – 20% restocking fee dependant on order value.

    The goods must be returned to the registered address of the Supplier via a trackable means and within 14 days of cancelation. Once the goods have been returned or for orders not dispatched, the Supplier will refund you within 30 days. If you fail to return the goods as required, the Supplier may charge you a sum not exceeding the direct costs of recovering the goods.
