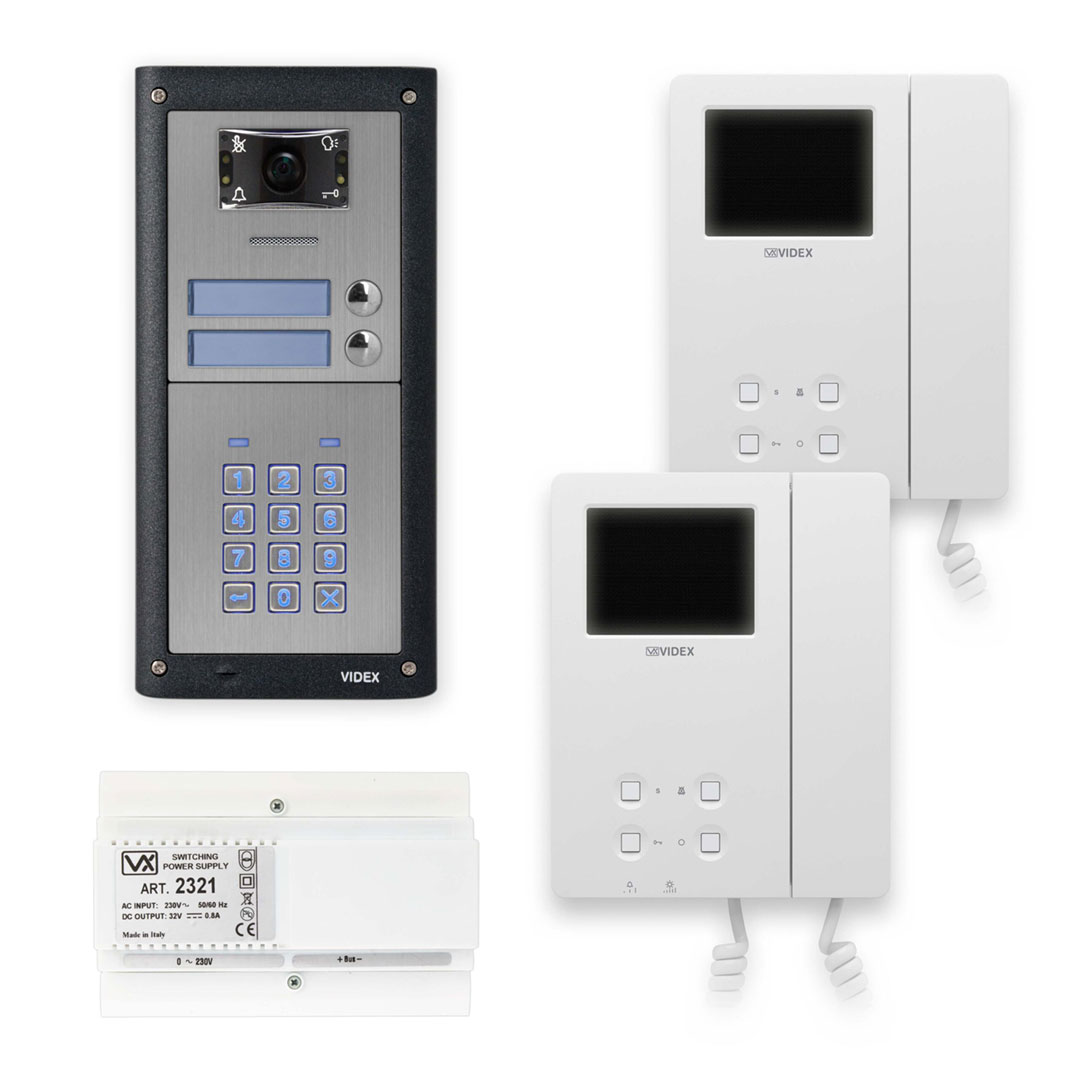

VIDEX ESVKC-2S/6286 2 Wire Video Intercom Kit

Description

Two button Surface mount vandal resistant two wire video kit With Keypad

Ideal for small scale systems it can however be expanded up to 8 entrances.

The video handset features and 3.5″ colour screen.

The 4000 series range of “True” 2 wire colour videokits with coded access (ESVKC series), are available as flush or surface kits with a choice of 4 different videophone options from the 6200, 6300, 6400 and 6700 series range.

Installations couldn’t be easier thanks to the common 2 wire BUS system (VX2300) using two non-polarity twisted pair wires (the system does not require coaxial cable). The videokits are ideal for small scale “1-to-1” installations or low-rise apartment blocks (up to a total of 12 apartments max. with the inclusion of additional 4000 series button expansion modules), but can also be expanded up to a maximum of 8 entrances where additional 2301N multiple entrance switchers are required.

The ESVKC series videokits are available as 1 or 2 button 4000 series colour videokits where the flexible design allows for up to a total of 4 videophones per call button with the facility for intercommunication between the videophones in the same apartment or intercommunication between videophones in different apartments.

Other key features of the videokit include: adjustable call tone, conversation time and microphone and speaker volume adjustments, selectable camera recall including external camera input. The combined speaker and camera module (4333-1 or 4333-2) entry panel has a built-in colour camera with white illumination LED’s that provides the best quality picture in any lighting condition. It also has a lock release relay (C, NO and NC) with selectable capacitor discharge, push to exit input, call progress reassurance tones and DDA compliant call progress LED’s: BUSY, CALL, SPEAK and DOOR OPEN.

The videokits also incorporate a 4800M codelock module which has 3 programmable access codes, 3 relay contact outputs (C, NO and NC) with push to exit inputs for relays 1 and 2 only. The relays can be programmed from 1-99 seconds or programmed with 00 for latching output.

Features

• Available as 1 & 2 button colour videokits (however expandable up to 12 buttons)
• Flush or surface mount door entrance panels based on the 4000 series range
• Videokits available with either 6200 series, 6300 series, 6400 series or 6700 series videophones
• Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
• Call a total of up to 4 videophones per call button
• Intercommunication between videophones in same apartment or between different apartments
• DDA compliant call progress LED’s and reassurance tones
• High quality colour camera with 4 illumination LED’s
• Selectable camera recall facility (including external camera input)
• PTE input and built-in dry contact relay (including selectable capacitor discharge)
• Microphone, speaker volume and balance adjustments
• 4800M codelock with 3 programmable codes, 3 dry contact relays, 2 PTE inputs (for relay 1 and 2 only)
