Description
Fadini Talos Bollard 9681L
With LEDS
Fully retractable bollard for traffic control
Automatic oil-hydraulic system, 230 Vac
ARMOURED SECURITY
Constructed to protect places where a high level of breakout resistance against ram-raids is demanded and many operations a day are required, such as commercial centers, banks, car showrooms, etc. Ideal to control access in residential, commercial and industrial areas.
OIL-HYDRAULIC
Hydraulic locking device in standing position (standard) and emergency manual lowering by a release spanner supplied with the equipment. Solenoid valve (as an option) for automatic lowering in case of power failure. Obstacle detector to prevent the bollard from rising when an obstacle is on it. Heating device for applications in cold climates (-40 °C).
EASY ACCESS TO THE OIL-HYDRAULIC COMPONENTS
The handy housing position of the motor pump and oil-hydraulic actuator inside the bollard allows for easy maintenance and reduces service and installation times. In this way the components are also more protected, rust and other factors of deterioration are prevented.
STRONG
Scratch-proof cataphoresis treated and polyester powder coated steel rising cylinder. Available also with an AISI 304 brushed stainless steel cover sleeve, thickness 12/10. HRC models (High Resistance Cylinder) for a greater resistance to breakout: 550.000 J. Connector and junction box IP 66 for cabling. Hall effect limit switch sensors, cylinder head with rubber edge and integrated LED lights.
VERSATILE
A vast range of command and safety accessories allow for reliable and precise control of the installations. Beeper to signal the movements. The electronic control unit can be set so that it can manage several bollards at a time.
UK Mainland Delivery Included on the Fadini Talos Bollard 9681L
To see our Full range of Fadini Bollards, click here
For more information from the manufacturer, click here
Unsure which type of gate automation is best for your situation or need technical help? We have over 30 years of experience in the Gate Automation industry so feel free to call us on 01223 839991 or email us at [email protected] for free expert advice.

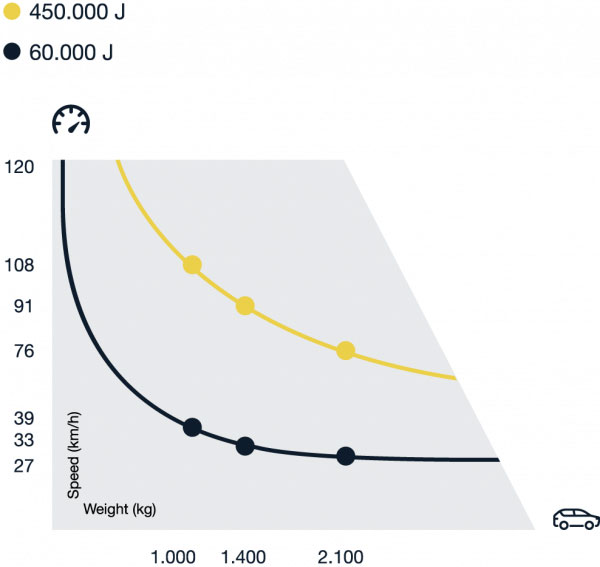

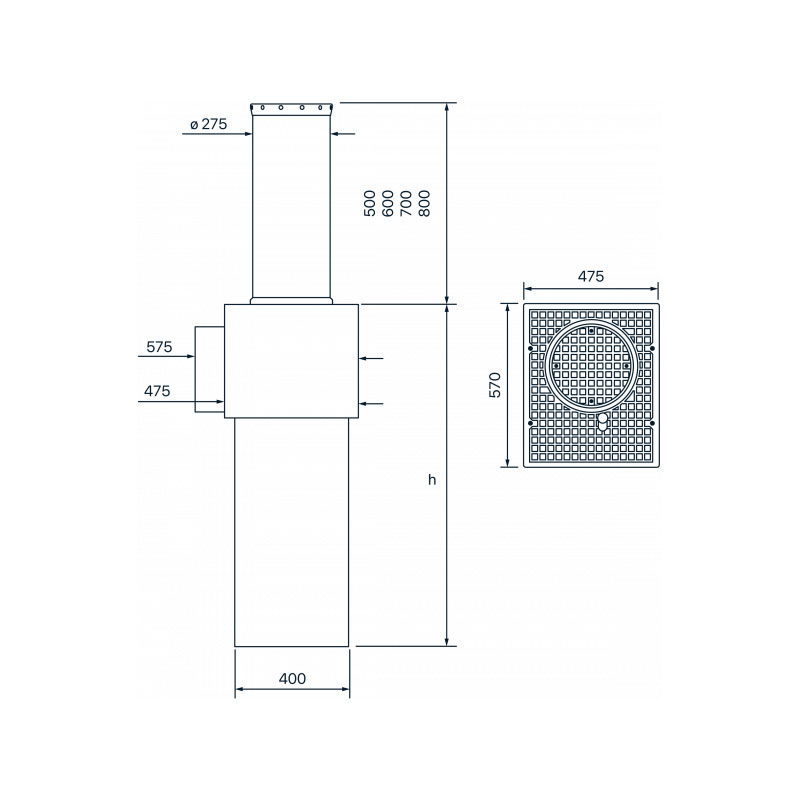

Fully retractable, heavy duty, automatic bollard consisting of an oil-hydraulic motor-pump unit incorporated inside the main structure and an oil-hydraulic actuator inside the moving cylinder. Suitable to meet residential, commercial and industrial applications and urban applications. IP 67. Height from ground level can be 500, 600, 700 or 800 mm. Scratch-proof S355J2H steel moving cylinder, thickness 12 mm and ø 275 mm, cataphoresis treated and polyester powder coated (an AISI 304 brushed stainless steel cover sleeve available). Cylinder head made of aluminium fitted with rubber edge and 12 amber-colour integrated LED lights. Cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Moving cylinder fitted with an approved retro-reflecting, high intensity micro-prismatic adhesive film (h 80 mm). Hot-dip galvanized steel pit. Access to the hydraulic release device for emergency manual lowering of the bollard by a special spanner with a triangular socket. Impact resistance 60.000 J [HRC: 90.000 J], breakout resistance 450.000 J [HRC: 550.000 J], static load max 1.500 kg (bollard in raised position), max 20.000 kg (lowered). Working temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Absorbed power 1.100 W. Rising time ~ 2,80 s [h 500 mm from ground level], ~ 3,40 s [h 600 mm from ground level], ~ 4,0 s [h 700 mm from ground level], ~ 4,50 s [h 800 mm from ground level]. Intensive use 2.000 cycles/a day
Bollard brochure
