VIDEX ERAKIT23B6788 ERA 2 WIRE VIDEOKIT

c/w 6788 7″ HANDSFREE MONITOR & 2321S PSU
(BLACK)(MIFARE)

The ERA series 2 wire colour videokit has been designed to work with the popular VX2300 2 wire BUS system. It includes the surface mount ERA23VB video entry panel with a built-in high quality CMOS (976×582 pixel) colour camera with a 65° vertical and 90° horizontal viewing angle & bright white illumination LED and is available in the popular gun metal grey finish.

It also incorporates DDA compliant call progress LEDs (system busy, call in progress, speak and door open), voice assistance and acoustic signals for the visually impaired. Other notable features include integrated Mifare/NFC proximity access, a 6 button coded access feature and call button configuration facility (1 button call, 2 button call, 4 button call or 1 button call with 6 button coded access).

It can also be expanded up to 8 entrances with up to 4 videophones or video monitors per apartment. The videokit can be configured with either 1, 2 or 4 call buttons or 1 button + 6 button coded access.

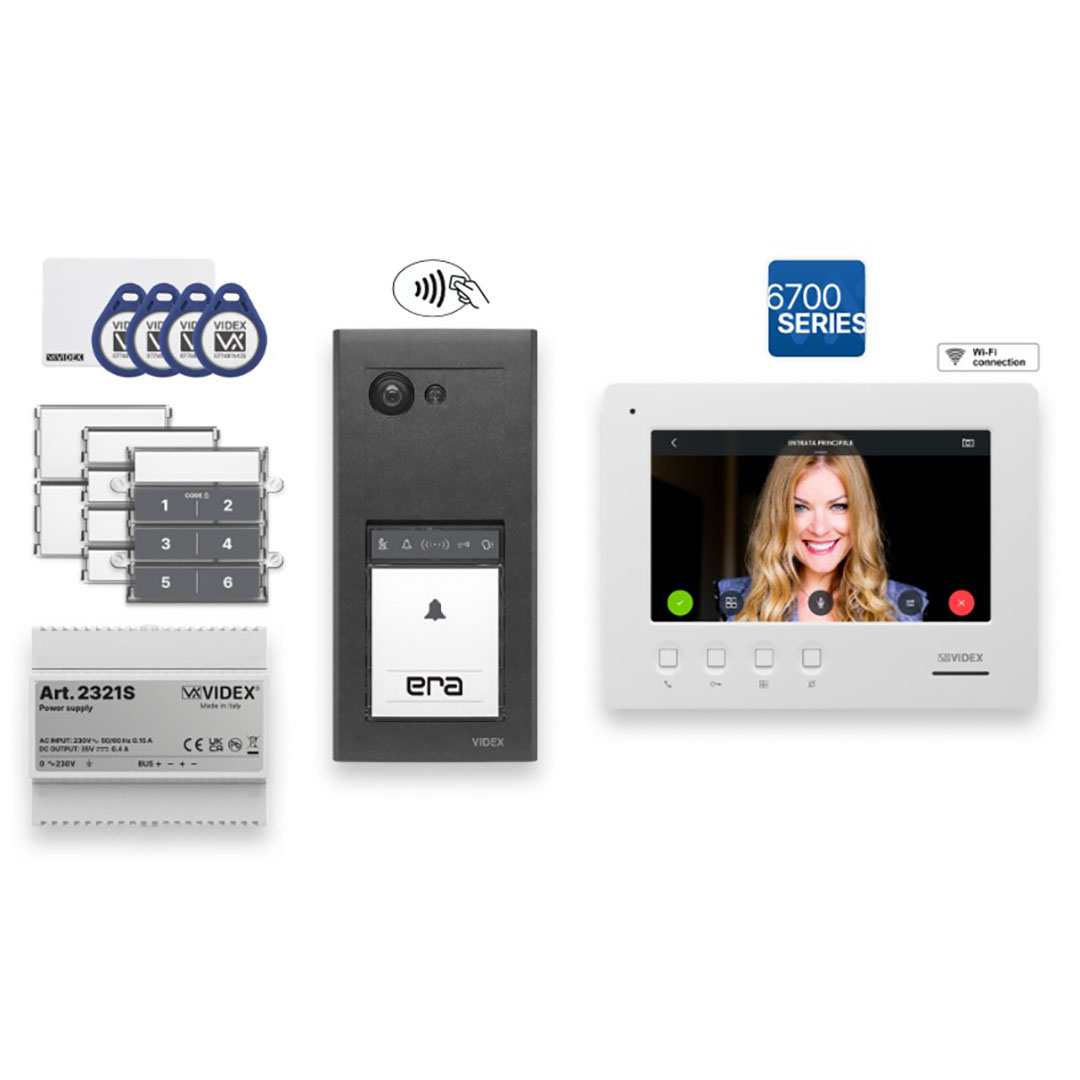

The videokit also includes a 6788 surface mount handsfree video monitor with 7″ hi-res full colour active matrix LCD screen, 2321S 2 wire BUS power supply and 1x955MF/C Mifare master proximity card and 4x955MF/T Mifare proximity cards and includes the nameplate kits for the desired call button configuration facility.

Features

• Common 2 wire BUS that uses two non-polarity twisted pair wires allowing for simplified installation.
• Expandable up to 8 entrances (using 2301, 2-4 entrance units) with up to 4 videophones per apartment.
• Incorporates a CMOS 976×582 (PAL) colour camera with 65° vertical and 90° horizontal viewing angles and white illumination LED.
• DDA compliant call progress LEDs, voice assistance and acoustic signals for the visually impaired.
• Integrated Mifare/NFC proximity reader able to read Mifare fobs/cards (ISO IEC 14443A).
• Program up to 2000 proximity fobs/cards.
• Call button configuration for 1 button, 2 button, 4 button or 1 button + 6 button coded access.
• Program up to 400 access codes (using 1 – 6 digits only).
• 1 push to exit input.
• 2 relay outputs with one output incorporating a capacitive discharge configuration option (12Vac/dc 1A max.).
• Compatible with the VIDEX virtual fob app available for smartphones.

Technical Info

• System: VX2300 digital (true 2 wire).
• Entry panel: ERA23VB surface mount colour video entry panel with hi-res CMOS colour camera (976×582 pixel – PAL) with white camera illumination LED, 4 call progress LEDs (busy, call, speak & door open), integrated Mifare/NFC proximity reader, gun metal grey finish.
• Videophone/monitor: 6788 surface mount handsfree video monitor with 7″ hi-res full colour active matrix LCD screen.
• Power supply: 2321S 2 wire BUS power supply (35Vdc).
• Proximity fobs/card: 4x955MF/T fobs and 1x955MF/C master card.
